Barreto E30SGB Stump Grinder Delivers Maximum Performance

The Barreto E30SGB stump grinder features a variant of the same time-tested track drive platform used by the TK series. The 30SGB has a hydraulically-driven cutter wheel that is raised and lowered into the stump and then moved from side to side to cut down. The engine is coupled to two gear pumps: the larger gear pump drives the cutter wheel and the smaller pump works the tilt and swing cylinders. The tracks are driven by independent hydrostatic pumps mounted on the rear of the engine for easy access and simple linkage control. Counterbalance valves on each track drive prevent the track motors from slipping while the cutter wheel is engaged in the cutting process, even while operating on a slope.

Maximum operational control is designed into the E30SGB

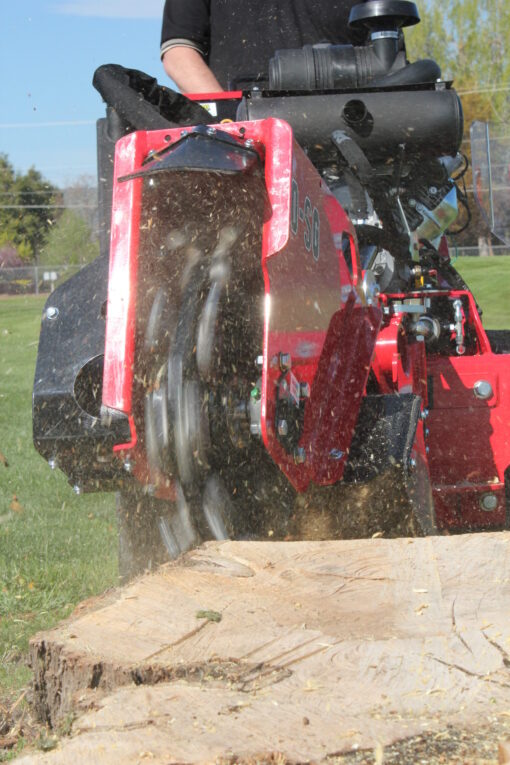

The cutter wheel operation and articulating arm are operated by controls mounted on the console. The cutter wheel is activated by a switch on the control stick and has a secondary safety switch to prevent accidental engagement. Back and forth movement across the stump, as well as the depth of cut, are easily controlled by handles on the console, allowing for carefully controlled movement of the cutter wheel as it reduces the stump to chips.

Increase Performance and Reduce Maintenance Costs with the Barreto hydraulic stump grinder

The all-hydraulic drive to the cutter wheel eliminates costly belts. It also increases customer satisfaction by ensuring there is no loss of power because of a damaged belt or mechanical component. The track drive increases maneuverability around the job site, creating customer satisfaction by allowing them to get the job done with increased efficiency.

Engine:
30SGB: Briggs Vanguard 31HP V-Twin

Dimensions:
Weight: 1700 lb.
Height: 49.5″
Length (head to side): 79″
Length (head straight): 98″
Width: 35.5″

Wheel Specifications:

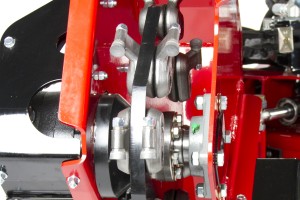

Cutting Wheel: 19.2″ diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12″
Cutting Height: 32″
Head Swing: 134″, 99.7″ arc

Tracking System:
Track Width: 180MM (7.1″)
Total Ground Contact: 472 sq. in.
