The Smartest Way To Charge by Towa Industries Inc.

TOWA’s TTPDM120S Power Distribution Manager

The TOWA PDM™ (Power Distribution Manager) is the next generation of smart battery charging appliances designed for professional landscapers in the Outdoor Power Equipment industry. The TTPDM120S 4-Channel PDM intelligently charges four batteries without overloading an electrical circuit by detecting amp draw requirements for each battery, safely distributing power to each battery charger.

CHARGER AGNOSTIC

By managing all the connected power outlets the PDM can be used to charge batteries from any manufacturer regardless of different amperage and voltage specifications. Simply plug the chargers into the PDM outlets and this SMART charger will efficiently manage the loads, automatically switching between outlets to charge as many batteries as the input circuit can handle.

REDUCE YOUR CHARGING COSTS

Large deployment of battery-powered tools will increase your monthly electricity demand and could potentially overload circuit breakers from limited standard power supply. Upgrading electrical panels to increase utility power is very costly The PDM allows landscapers utilize existing available power outlets and circuits to charge up to 4 batteries at the same time. With cost savings and efficiency in mind the PDM lowers electrical costs and save multiple headaches.

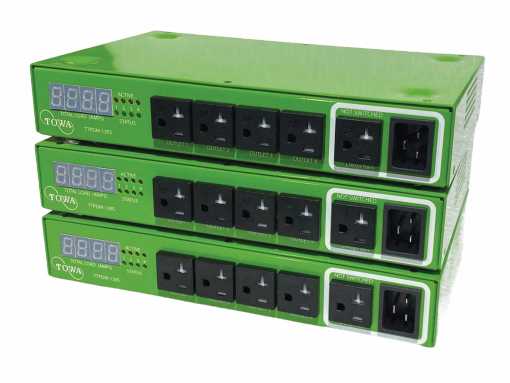

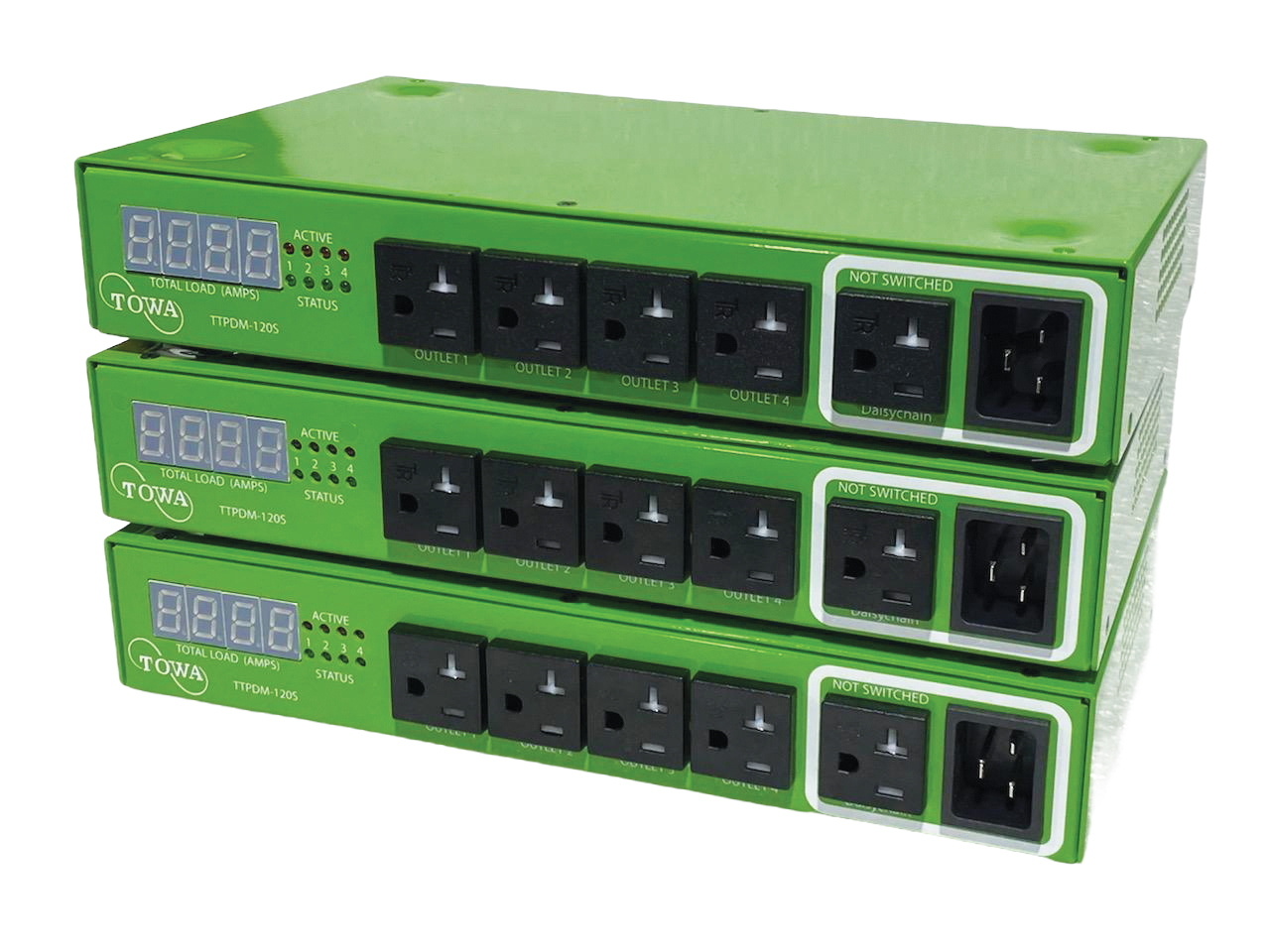

STACK AND DOUBLE YOUR CHARGING INFRASTRUCTURE

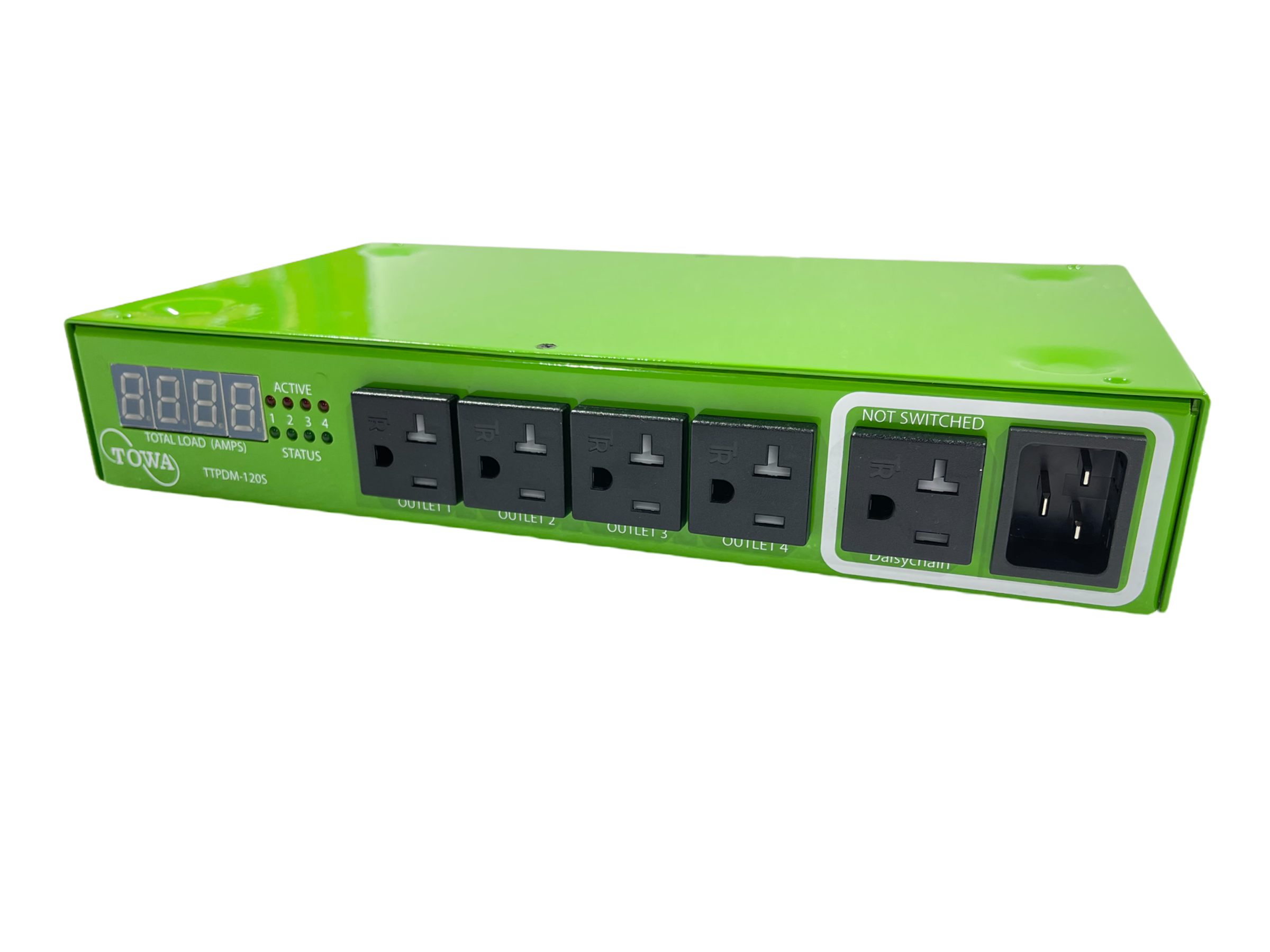

The latest TTPDM120S 4-Channel PDM now has a 5th outlet that is able to link with additional TTPDM120S PDM models, Towa’s latest technology provides the option to expand your charging infrastructure by daisy-chaining multiple PDM’s to charge more than four batteries at once.

Includes

• 1x TOWA TTPDM120S 4-Channel Smart Charger
• 1x Power Input Cord

Patents Pending UL Certified

Features

• Intelligent power management activates outlets
• Built-in software circuit breaker safely throttles total amperage draw
• SMART power outlet monitoring
• four-segment LED displays total system amperage draw
• Outlet memory restores outlet state in event of a power outage
• Web-enabled interface (future optional upgrade)

TOWA Tools Model TTPDM120S

• Specification Input: 120V 50/60hz 20A
• Output: (4) NEMA 5-20R sockets
• Dimensions: 12 in W x 7.25 in D x 2 in H
• Weight: 2 lbs (0.45 kg)
• Warranty: 2-Year Warranty
